High Strength Steel Plate Description
High Strength Low Alloy Steel Plate provide greater environmental
corrosion resistance and are stronger than conventional carbon
steel.It has a high strength-to-weight ratio, excellent
bendability, weldability and cold formability, so it is widely used
in structural components that need to reduce weight but require
high strength.
S690QL is a quenched and tempered high-strength low-alloy steel, in
compliance with EN 10025:6.Its yield strength is greater than
690MPa, and it is usually used to manufacture low-temperature
resistant, high-strength key components and structural parts, such
as construction machinery, mining machinery, etc.
HSLA Steel Sheet Features
- Reduced weight of products and structures while retaining strength
- Increased payload capacity
- Increased reach capacity
- Reduced fuel usage
- Resistance to wear and corrosion
- Easy weldability and laser cutting
High-strength low-alloy steel (HSLA) is a type of alloy steel that
provides better mechanical properties or greater resistance to
corrosion than carbon steel. HSLA steels vary from other steels in
that they are not made to meet a specific chemical composition but
rather specific mechanical properties.
High Strength Plates Specifications
Standard | ASTM,AISI,JIS,GB,DIN,EN |
Type | Low alloy steel (wear resistant), weather resistant steel plate,
acid resistant steel plate,high strength steel plate, wear
resistant steel plate, general steel |
Thickness | 2-300mm,or as required |
Width | 100-3000mm,or as required |
Tolerance | ±1% |
Technique | Hot rolled,cold rolled |
Processing service | Bending,Welding,Decoiling,Cutting,Punching |
Packing | standard export packing (inside:water proof paper;outside:steel covered with strips and
pallets) |
S690QL Steel Yield Strength Min. (Mpa)
Thickness (mm) | 3-50mm | 50-100mm | 100-125mm | 125-200mm |
S690Q/S690QL/S690QL1 | 690Mpa | 650Mpa | 630Mpa | 630Mpa |
S690QL Plate Tensile Strength and Elongation
EN 10025-6 | Tensile | Tensile | Tensile | Tensile | Elongation |
Grade | Mpa | Mpa | Mpa | Mpa | After fracture |
Thickness (mm) | 3-50mm | 50-100 | 100-125 | 125-200 |
|
S690Q/S690QL/S690QL1 | 770-940 | 760-930 | 710-900 | 710-900 | ≥14% |
We can customize the length, width and thickness according to your
needs. If you have any requirements, please contact
us in time, we will provide you with the most timely and professional
service to help you solve the problem.
HSLA Steel Plate Processing Service
We offer value-added services including polishing, annealing, heat
treatment, and welding for HSLA steel sheet.
Process
Service:Bending,Welding,Decoiling,Punching,Cutting,Moulding,or as
requirement

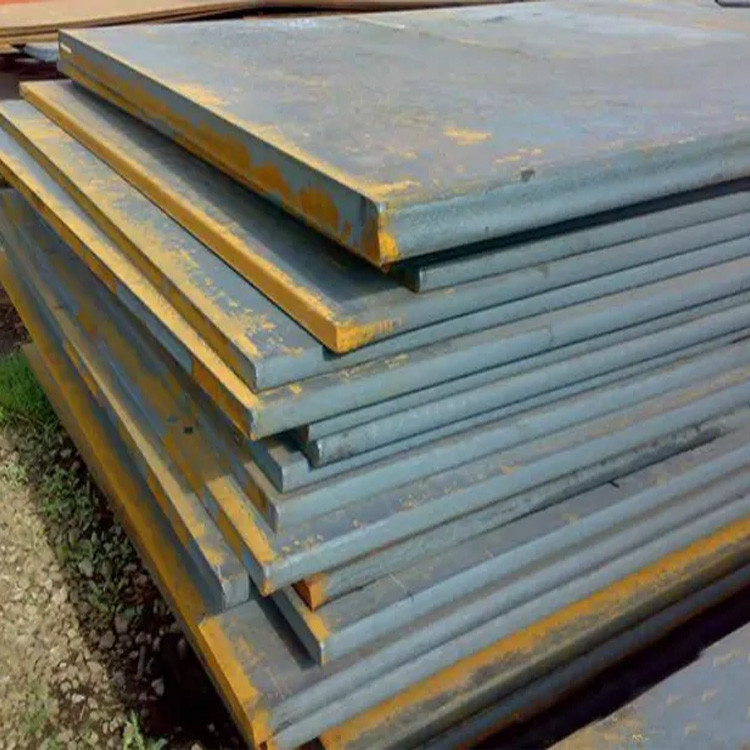

Product Photo
High Strength Sheet Packing
| Packing Details | Standard Seaworthy Package or according to customer's requirements |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
High Strength Plates Material Testing
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Hardness Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
FAQ
Q: Do you provide HSLA Steel Plate samples ? is it free or extra ?
A: The sample could provide for customer free,but the freight will
be covered by customer account.
Q: Do you accept the third-party inspection?
A: Yes,absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops,
inspected by HNJBL piece by piece according to national QA/QC
standard. We also could issue the warranty to customer to guarantee
the quality.
Q: How can I get your quotation as soon as possible?
A: The email will be checked within 6 hours,and the Wechat and
WhatsApp will be online 24 hours.Please send us your requirement
and order information,specification(Steel
grade,size,quantity,destination port),we will work out the best
price soon.
