321 Stainless Steel Description
321 stainless steel is a Ni-Cr-Ti type austenitic stainless steel
with good general corrosion resistance,excellent wear resistance,
high temperature resistance and creep resistance,mainly composed of
iron, chromium (17.00-19.00%), nickel (9.00-12.00%),and titanium
(5C-0.70%), and the carbon content does not exceed 0.08%.Due to the
addition of titanium, 321 stainless steel can effectively prevent
the formation of chromium carbide in high temperature environments,
thereby improving its resistance to intergranular corrosion
321 is basically a 304 grade containing a stabilizer of titanium,
similar in machinability to 304 stainless steel. Commonly used for
service in the 1000-1600°F temperature range. For service
temperatures up to about 1600°F, a stabilizing treatment at
1550-1650°F, air cool, may be used to provide optimum resistance to
intergranular corrosion and to polythionic acid stress corrosion
cracking.
Stainless Steel Plate Specifications
Product | Stainless steel sheet |
Thickness | 0.2~200mm |
Standard | ASTM,JIS,EN,DIN,GB,etc |
Material | 310S,310,309,309S,316,316L,316Ti,317,317L,321,321H,347,347H,304,304L,302,301, 201,202,403,405,409,409L,410,410S,420,430,631,904L,Duplex,etc |
Surface | 2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand
blast,Brush,etching,etc |
Width | 1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm,etc |
Length | 2000mm,2440mm,3000mm,5800mm,6000mm,etc |
Package | Standard export package,suit for all kinds of transport,or as
required. |
321Steel Chemical Elements
| GRADE | C | MN | S | NI | CR | OTHER |
| 321 | 0.08 | 2.00 | 0.03 | 9.00/12.00 | 17.00/19.00 | Ti 5X (C+N)
Min. to 0.70 Max. |
321 Stainless Mechanical Properties
| Grade | Tensile Strength
ksi (min.) | Yield Strength 0.2%
Offset ksi (min.) | Elongation -
% in
50 mm (min.) | Hardness
(Brinell) MAX |
| 321 | 75 | 30 | 40 | 217 |
SS Plate Processing Service
We offer value-added services including polishing, annealing, heat
treatment, and welding for stainless steel sheets.
Process
Service:Bending,Welding,Decoiling,Punching,Cutting,Moulding,or as
requirement
SS Steel Plate Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair
line,sand blast,brush.
Multiple specifications are available.

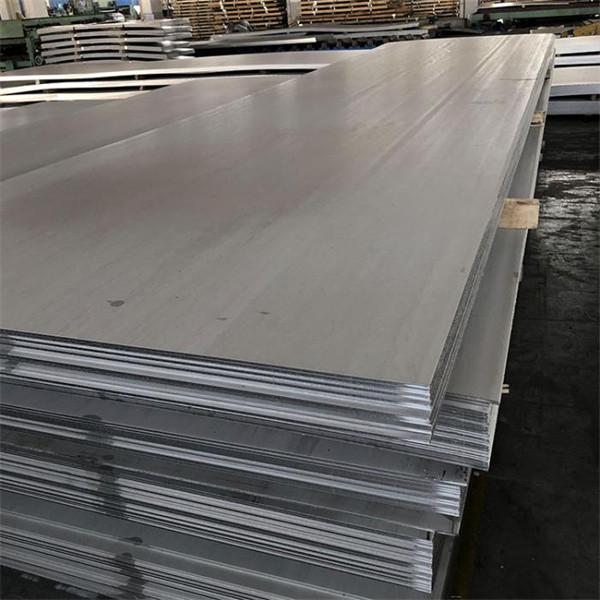

Product Photo
Stainless Steel Plate Packing
| Packing Details | Standard Seaworthy Package or according to customer's requirements |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
SS Steel Plate Material Testing
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Hardness Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
FAQ
Q: Do you provide stainless steel plate samples ? is it free or
extra ?
A: The ss plate sample could provide for customer free,but the
freight will be covered by customer account.
Q: Do you accept the third-party inspection?
A: Yes,absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops,
inspected by HNJBL piece by piece according to national QA/QC
standard. We also could issue the warranty to customer to guarantee
the quality.
Q: How can I get your quotation as soon as possible?
A: The email will be checked within 8 hours,and the Wechat and
WhatsApp will be online 24 hours.Please send us your requirement
and order information,specification(Steel
grade,size,quantity,destination port),we will work out the best
price soon.
