310S Stainless Steel Plate Description
310/310S stainless steel is a high alloy austenitic chromium-nickel
stainless steel, contains a high chromium-nickel content, and is
known for its superior scaling and corrosion resistance,has
excellent high temperature oxidation resistance and high
strength.Similar to 310, 310s stainless steel with a lower carbon
content to improve its creep strength and high temperature
performance.
It exhibits excellent oxidation resistance and anti-sulfurization
ability at high temperatures, 310 steel can withstand temperatures
up to 1200℃, and can be used at higher temperatures than ordinary
stainless steel.Great ductility, weldability, and high-temperature
properties make 310 Stainless Steel the ideal choice for projects
that require service at temperatures up to 1150℃.
Stainless Steel Plate Specifications
Product Name | Stainless steel sheet |
Thickness | 0.2~200mm |
Standard | ASTM,JIS,EN,DIN,GB,etc |
Material | 310S,310,309,309S,316,316L,316Ti,317,317L,321,321H,347,347H,304,304L,302,301, 201,202,403,405,409,409L,410,410S,420,430,631,904L,Duplex,etc |
Surface | 2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand
blast,Brush,etching,etc |
Width | 1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm,etc |
Length | 2000mm,2440mm,3000mm,5800mm,6000mm,etc |
Package | Standard export package,suit for all kinds of transport,or as
required. |
310 Stainless Steel Chemical Elements
| % | Cr | Ni | C | Si | Mn | P | S | Mo | Cu | Fe |
| 310 | min: 24.0
max:26.0 | min: 19.0
max: 22.0 | 0.25 | 0.75 | 2.0 | 0.045 | 0.030 | 0.75 | 0.5 | balance |
| 310S | min: 24.0
max:26.0 | min: 19.0
max: 22.0 | 0.08 | 1.00 | 2.0 | 0.045 | 0.030 | 0.75 | 0.5 | balance |
310S Stainless Steel Mechanical Properties
| Grade | Tensile Strength
ksi (min.) | Yield Strength 0.2%
Offset ksi (min.) | Elongation -
% in
50 mm (min.) | Hardness
(Brinell) MAX | Hardness
(Rockwell B) MAX |
| 310/310S | 75 | 30 | 40 | 217 | 95 |
SS Plate Processing Service
We offer value-added services including polishing, annealing, heat
treatment, and welding for stainless steel sheets.
Process
Service:Bending,Welding,Decoiling,Punching,Cutting,Moulding,or as
requirement
SS Steel Plate Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair
line,sand blast,brush.
Multiple specifications are available.

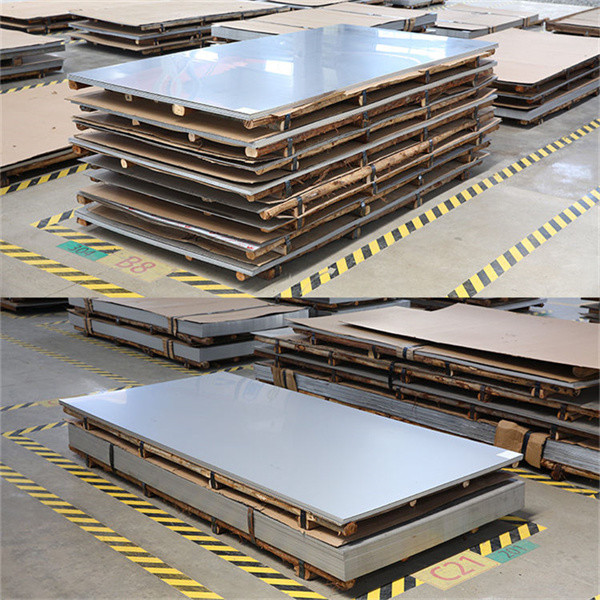

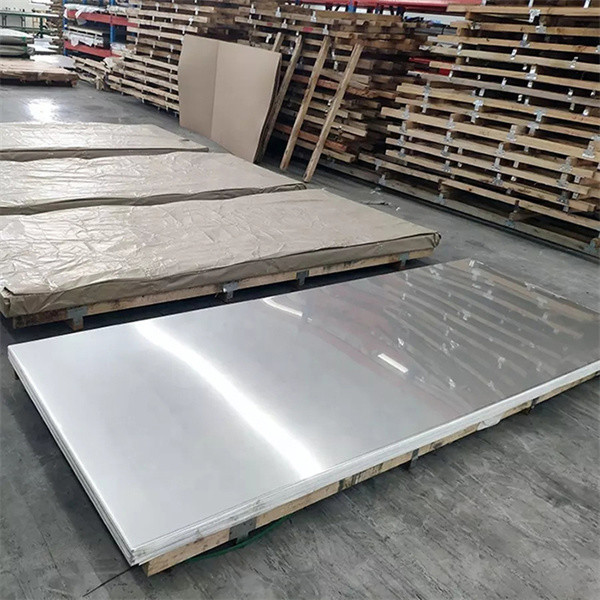

Product Photo
Stainless Steel Plate Packing
| Packing Details | Standard Seaworthy Package or according to customer's requirements |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
SS Steel Plate Material Testing
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Hardness Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
FAQ
Q: Do you provide stainless steel plate samples ? is it free or
extra ?
A: The ss plate sample could provide for customer free,but the
freight will be covered by customer account.
Q: Do you accept the third-party inspection?
A: Yes,absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops,
inspected by HNJBL piece by piece according to national QA/QC
standard. We also could issue the warranty to customer to guarantee
the quality.
Q: How can I get your quotation as soon as possible?
A: The email will be checked within 8 hours,and,the Wechat and
WhatsApp will be online 24 hours.Please send us your requirement
and order information,specification(Steel
grade,size,quantity,destination port),we will work out the best
price soon.
