Stainless Pipe Description
Schedule 10 stainless steel pipes are high end steel pipes made
from profound quality raw stainless steel materials,designed
specifically for low-pressure usage.Depending on the outer diameter
of the ss pipe, the specific wall thickness of SCH 10 is
different.Sch 10 stainless pipe is available in ferritic,
austenitic, duplex, and martensitic stainless steel alloys, mainly
composed of iron, chromium (Cr) and nickel (Ni), of which the
chromium content is usually more than 14%,provides stainless steel
excellent corrosion resistance. Common materials include 304, 316
and other stainless steel grades.
Grade 304 stainless steel is the most versatile stainless steel
material, known for its strength and corrosion resistance widely
used in general environments.316 stainless steel contains
molybdenum elements, which are more superior in acid and alkali
resistance, high temperature resistance and pitting resistance, and
is suitable for marine and chemical environments.
Stainless steel pipes are in different grades, categories and in
shapes.Stainless steel pipes are being manufactured in different
shapes,sizes, schedules and diameters as every application requires
different size and diameter. HNJBL stainless steel pipes in
different grades,as grade 201,304,304L,316,316L,etc.
Stainless Steel Pipe Specification
| Item | Stainless Steel Pipe/Tube |
| Grade | 200 series,300 series,400 series |
| Standard | ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456,
DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216,
BS3605,GB13296 |
| Material | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L,
316N,201,202,etc |
| Surface | Polishing,annealing,pickling,bright,etc |
| Type | hot rolled,cold rolled,seamless,welded |
| stainless steel round pipe/tube |
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 1mm-150mm(SCH10-XXS) |
| stainless steel square pipe/tube |
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 4mm*4mm-800mm*800mm |
| stainless steel rectangular pipe/tube |
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 1mm-150mm(SCH10-XXS) |
| Length | 4000mm,5800mm,6000mm,12000mm,or as required. |
| Packing | Standard Seaworthy Package,or as requirement |
| Port | Tianjin,Qingdao,Shanghai port,any port in China is available |
Sch 10 Stainless Steel Tube Dimension
| Nominal size [inches] | Outside diameter [inches] | Outside diameter [mm] | Wall thickness [inches] | Wall thickness [mm] | Weight [lb/ft] | Weight [kg/m] |
| 1/2 | 0.840 | 21.3 | 0.083 | 2.11 | 0.68 | 1.00 |
| 3/4 | 1.050 | 26.7 | 0.083 | 2.11 | 0.87 | 1.29 |
| 1 | 1.315 | 33.4 | 0.109 | 2.77 | 1.41 | 2.11 |
| 1 1/4 | 1.660 | 42.2 | 0.109 | 2.77 | 1.82 | 2.71 |
| 1 1/2 | 1.900 | 48.3 | 0.109 | 2.77 | 2.1 | 3.13 |
| 2 | 2.375 | 60.3 | 0.109 | 2.77 | 2.66 | 3.96 |
| 2 1/2 | 2.875 | 73.0 | 0.120 | 3.05 | 3.56 | 5.29 |
| 3 | 3.500 | 88.9 | 0.120 | 3.05 | 4.37 | 6.50 |
| 3 1/2 | 4.000 | 101.6 | 0.120 | 3.05 | 5.01 | 7.46 |
| 4 | 4.500 | 114.3 | 0.120 | 3.05 | 5.66 | 8.42 |
| 5 | 5.563 | 141.3 | 0.134 | 3.40 | 7.82 | 11.64 |
| 6 | 6.625 | 168.3 | 0.134 | 3.40 | 9.35 | 13.91 |
| 8 | 8.625 | 219.1 | 0.148 | 3.76 | 13.50 | 20.10 |
| 10 | 10.750 | 273.1 | 0.165 | 4.19 | 18.79 | 27.96 |
| 12 | 12.750 | 323.9 | 0.180 | 4.57 | 24.34 | 36.22 |
| 14 | 14.000 | 355.6 | 0.188 | 4.78 | 27.97 | 41.62 |
| 16 | 16.000 | 406.4 | 0.188 | 4.78 | 32.02 | 47.65 |
| 18 | 18.000 | 457.0 | 0.188 | 4.78 | 36.05 | 53.65 |
| 20 | 20.000 | 508.0 | 0.218 | 5.54 | 46.42 | 69.09 |
| 22 | 22.000 | 559.0 | 0.218 | 5.54 | 51.14 | 76.10 |
| 24 | 24.000 | 610.0 | 0.250 | 6.35 | 63.93 | 95.13 |
| 30 | 30.000 | 762.0 | 0.312 | 7.92 | 99.60 | 148.22 |
SS Tube
Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair
line,sand blast,brush.
Multiple specifications are available.
Stainless Pipe End Protection:Plastic Caps
Ends:Plain End, Beveled End, Threaded

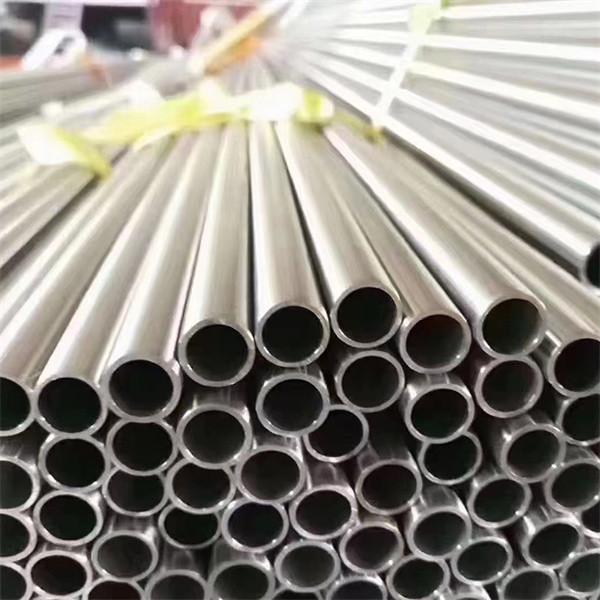

Stainless Tube Photo
Stainless Steel Pipe Packing:
Details:Standard Seaworthy Package,or as requirement
Port:Tianjin,Qingdao,Shanghai port,or as required
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
Stainless Steel Pipe FAQ
Q: What about Stainless steel pipe price information?
A: Negotiation.Prices vary due to changes in raw material prices on
a regular basis.
Q: What are your company's main stainless steel products?
A: Our main products are stainless steel plate/sheet, coil,
round/square pipe, bar, channel, etc.
Q: What are your payment terms?
A: We can accept the TT,LC or Negotiation
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, Third Party
Inspection is available.
Q: Can I pay you a visit at your factory?
A: Customers from all around the world are welcome to visit our
factory.
