Stainless Steel Square Pipe Description
SS Square Pipe is a hollow stainless steel pipes with square
section.HNJBL is a manufacturer and supplier of all kinds of
stainless steel pipes. Stainless steel pipes are in different
grades, categories and in shapes.Stainless steel pipes are being
manufactured in different shapes,sizes, schedules and diameters as
every application requires different size and diameter. HNJBL
stainless steel pipes in different grades,as grade
201,304,304L,316,316L,etc.
Grade 304 stainless steel square tubing is known for its strength
and corrosion resistance widely used in general environments.
304L can be safely used for many of the operations of welding
construction because it has a low content of carbon, which greatly
reduces the formation of carbides that can be harmful.
Stainless Steel Pipe Specification
| Item | Stainless Steel Pipe/Tube |
| Grade | 200 series,300 series,400 series |
| Standard | ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456,
DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216,
BS3605,GB13296 |
| Material | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L,
316N,201,202,etc |
| Surface | Polishing,annealing,pickling,bright,etc |
| Type | hot rolled,cold rolled,seamless,welded |
| stainless steel round pipe/tube |
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 1mm-150mm(SCH10-XXS) |
| stainless steel square pipe/tube |
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 4mm*4mm-800mm*800mm |
| stainless steel rectangular pipe/tube |
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 1mm-150mm(SCH10-XXS) |
| Length | 4000mm,5800mm,6000mm,12000mm,or as required. |
| Packing | Standard Seaworthy Package,or as requirement |
| Port | Tianjin,Qingdao,Shanghai port,any port in China is available |
SS Square Tube Standard Sizes
| OD IN INCHES | WALL THICKNESS
GAUGE | WALL THICKNESS
DECIMAL | WEIGHT PER FOOT
IN LBS. |
|---|
| 1 | 18 | .0490 | .630 |
| 1 | 16 | .0650 | .827 |
| 1 | 11 | .1200 | 1.436 |
| 1 1/4 | 16 | .0650 | 1.050 |
| 1 1/4 | 14 | .0830 | 1.317 |
| 1 1/4 | 11 | .1200 | 1.844 |
| 1 1/2 | 16 | .0650 | 1.270 |
| 1 1/2 | 14 | .0830 | 1.610 |
| 1 1/2 | 11 | .1200 | 2.255 |
| 1 1/2 | 7 | .1800 | 3.630 |
| 1 3/4 | 14 | .0830 | 1.880 |
| 2 | 16 | .0650 | 1.710 |
| 2 | 14 | .0830 | 2.164 |
| 2 | 11 | .1200 | 3.068 |
| 2 | 7 | .1800 | 4.455 |
| 2 | 3/16 | .1880 | 4.460 |
| 2 | 1/4 | .2500 | 6.010 |
| 2 1/2 | 7 | .1800 | 5.680 |
| 3 | 14 | .0830 | 3.293 |
| 3 | 11 | .1200 | 4.700 |
| 3 | 7 | .1800 | 6.903 |
| 3 | 3/16 | .1880 | 6.900 |
| 3 | 1/4 | .2500 | 10.000 |
| 4 | 11 | .1200 | 6.260 |
| 4 | 7 | .1800 | 9.270 |
| 4 | 3/16 | .1880 | 9.270 |
| 4 | 1/4 | .2500 | 12.680 |
| 6 | 1/4 | .2500 | 18.770 |
| 8 | 3/8 | .3750 | 38.890 |
SS Tube Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair
line,sand blast,brush.
Multiple specifications are available.
Stainless Pipe End Protection:Plastic Caps
Ends:Plain End, Beveled End, Threaded

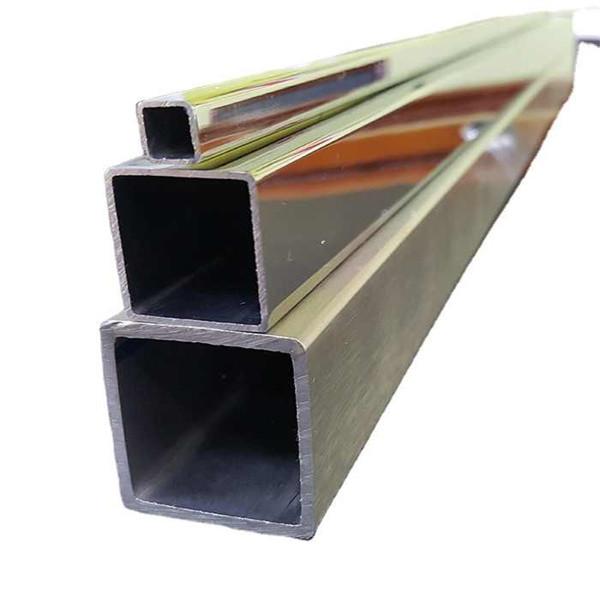

Stainless Tube Photo
Stainless Steel Pipe Packing:
Details:Standard Seaworthy Package,or as requirement
Port:Tianjin,Qingdao,Shanghai port,or as required
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
Stainless Steel Pipe FAQ
Q: What about Stainless steel pipe price information?
A: Negotiation.Prices vary due to changes in raw material prices on
a regular basis.
Q: What are your company's main stainless steel products?
A: Our main products are stainless steel plate/sheet, coil,
round/square pipe, bar, channel, etc.
Q: What are your payment terms?
A: We can accept the TT,LC or Negotiation
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, Third Party
Inspection is available.
Q: Can I pay you a visit at your factory?
A: Customers from all around the world are welcome to visit our
factory.
