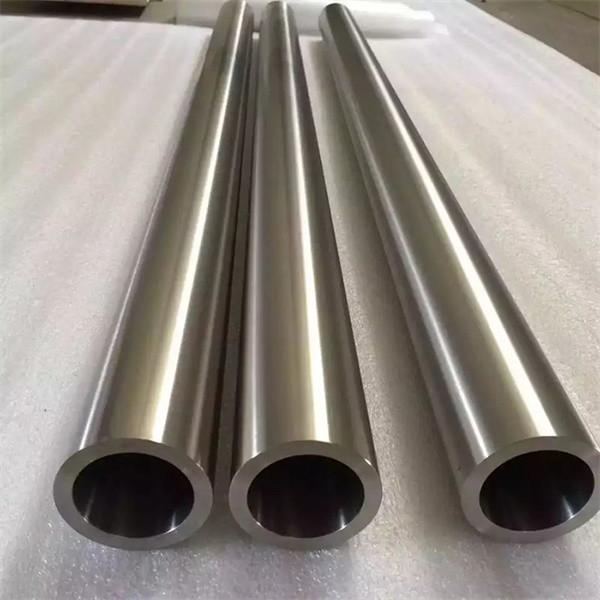

321 SS Tubing Description
321 Stainless Steel Tubing is a titanium-stabilized austenitic
stainless steel with good intergranular corrosion resistance and
high temperature strength.Due to the addition of titanium, 321
stainless steel tube has high mechanical strength and creep
resistance at high temperatures, suitable for long-term use in high
temperature environments.
321 ss tubing has excellent oxidation resistance and corrosion
resistance in high temperature environments, especially in the
temperature range of 800-1500°F (427-816°C), which can effectively
prevent intergranular corrosion.
SS321 Seamless Pipe Size
Size:6NB -1200NB
OD:1/8"-12" NPS
Thickness:0.6-12.7mm
Length:Single, Double Random & Cut Length
ASTM A312 TP321 Welded Pipe
Size:1/8”-36” NB, 1/4” -36” OD
OD:6.35-114.3 mm
Thickness:0.8-12.7 mm
Length:up to 26 meters,or as requirements
Size can be customized
Stainless Steel Pipe Specification
| Grade | ASTM A312 / ASTM SA 312 |
| Specifications | ANSI/ ASME B36.19M, ANSI/ ASME B36.10M |
| Forms | Rectangle, Hex, Honed, Square, Round, Hydraulic Pipe,or as required |
| Technology | 100% X Ray Welded, CDW, ERW, Welded, Seamless, Fabricated |
| End Bevel | Plain, Beveled and Treaded End |
| Delivery & Finished Condition | Bright Annealed, Cold Drawn, Polished, Annealed and Pickled,
Pickled and Passivated |
| Surface Finish | 2B, No.4, No.1, No.8 Mirror Finish or custom Finish as per customer
Requirements |
| Wall Thickness | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Additional Service | Grooving, Threading, Machining, Ultrasonic Testing, Customer
Tagging/ Marking, Destructive, MTR’s Available, Threading,
Polishing, Export Documentation, Non Destructive, Beveling, Export
Packaging, Cutting, Color Coding, Material testing |
Type 321 Stainless Steel is an austenitic stainless steel. It has
many of the same qualities of Type 304, except for a higher level
of titanium and carbon.
Type 321 offers outstanding corrosion and oxidation resistance, as
well as excellent toughness even down to cryogenic temperatures.
321 Stainless is resistant to atmospheric corrosion, sterilizing
solutions, many organic chemicals, and a wide variety of inorganic
chemicals.
321 SS Pipe Chemical Composition
| Ni | 9 - 12 |
| Cr | 17 - 19 |
| C | 0.08 max |
| N | 0.10 max |
| Fe | Balance |
| Mn | 2 max |
| Si | 0.75 max |
| S | 0.03 max |
| P | 0.045 max |
| Ti | 5xC min
0.60% max |
321 Stainless Pipe Mechanical Properties
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi - 75000 , MPa - 515 |
| Yield Strength (0.2%Offset) | Psi - 30000 , MPa - 205 |
| Elongation | 35 % |
SS Seamless Pipe Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair
line,sand blast,brush.
Multiple specifications are available.
Seamless Pipe End Protection:Plastic Caps
Ends:Plain End, Beveled End, Threaded
Stainless Steel Pipe FAQ
Q: What about Stainless steel pipe price information?
A: Negotiation.Prices vary due to changes in raw material prices on
a regular basis.
Q: What are your company's main stainless steel products?
A: Our main products are stainless steel plate/sheet, coil,
round/square pipe, bar, channel, etc.
Q: What are your payment terms?
A: We can accept the TT,LC or Negotiation
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, Third Party
Inspection is available.
Q: Can I pay you a visit at your factory?
A: Customers from all around the world are welcome to visit our
factory.
