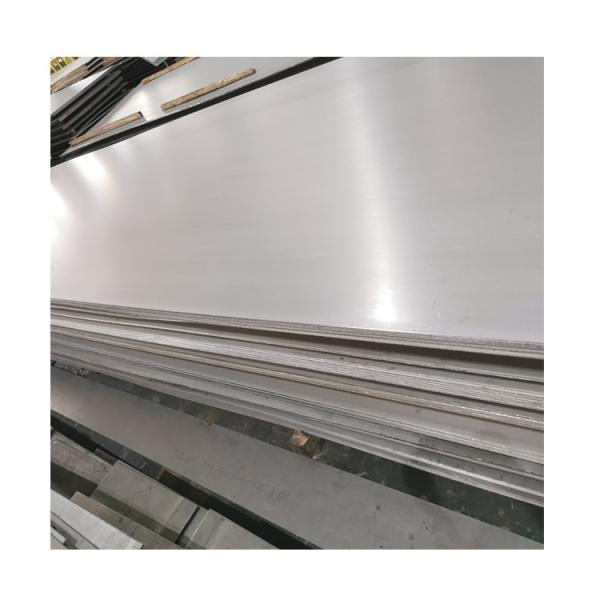

    1mm~22mm 317LMN Stainless Steel Sheet Plate High tensile Strength

    Ask Lasest Price
    Brand Name : HNJBL
    Model Number : 317LMN
    Certification : SGS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200000 Ton/Tons per Month
    Delivery Time : 10days
    • Product Details
    • Company Profile

    1mm~22mm 317LMN Stainless Steel Sheet Plate High tensile Strength

    what is 317LMNStainless Steel Plate

    317LMN steel plate is a high-strength austenitic stainless steel that is commonly used in the food and beverage processing, pharmaceutical, and chemical industries. It is highly resistant to corrosion and heat, making it an ideal choice for applications that require a durable material. It is also non-magnetic and non-toxic, making it safe for use in food processing and other applications. It can be used in a variety of applications, including storage tanks, piping, pressure vessels, and other structural components.


    what are the differences between 317LMN stainless steel and 316 stainless steel


    The primary difference between 317LMN stainless steel and 316 stainless steel is that 317LMN stainless steel is an austenitic steel grade, while 316 stainless steel is a ferritic steel grade. 317LMN stainless steel is higher in molybdenum content than 316 stainless steel, which increases its corrosion resistance in certain environments. Additionally, 317LMN stainless steel has higher levels of nitrogen and lower levels of carbon than 316 stainless steel, which gives it a higher tensile strength.


    Chemical Composition (%) of 317LMN Stainless Steel Plate
    CarbonSiliconSulfurPhosphorusChromiumMolybdenumManganeseNickelNitrogen
    0.0300.750.0300.04517.0-20.04.0-5.02.0013.5-17.50.10-0.20
    Mechanical Properties of 317LMN Stainless Steel Plate
    Yield Strength
    0.2% Offset
    Ultimate Tensile
    Strength
    Elongation
    in 2 in.
    Hardness
    psi (min.)(MPa)psi (min.)(MPa)% (min.)(max.)
    30,00020580,0005504096 Rockwell B

    Physical Properties of 317LMN Stainless Steel Plate
    Density lb/inᶟ0.290
    Density g/cmᶟ8.0
    Melting Range2540-2630°F/1393 – 1443 °C
    Thermal Conductivity at 212°F (100°C)8.7 BTU/hr/ft²/ft/°F
    Thermal Conductivity at 212°F (100°C)1.26 W/m-°K
    Electrical Resistivity33.5 Microhm-in at 68°C
    Electrical Resistivity85.1 Microhm-cm at 20°C


    About us


    Packing & Delivery


    Packing Details : Export standard package,bundled or be required.
    The inner size of container is below:
    20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
    40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
    40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
    Delivery Details : 7-15 days or according to the order quantity or upon negotiation
