    316 Stainless Steel Schedule 40 Seamless Pipe For Petrochemical Industry

    Ask Lasest Price
    Brand Name : HNJBL
    Model Number : 300 series
    Certification : SGS,BV
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100000Ton/Tons per month
    Delivery Time : 5-25 working days
    • Product Details
    • Company Profile

    316 Stainless Steel Schedule 40 Seamless Pipe For Petrochemical Industry

    316 Stainless Pipe Specification

    316 Stainless Steel,also referred to in many cases as marine stainless steel,is designed with excellent corrosion resistance. Grade 316 has better crevice corrosion and pitting resistance compared to the 304 alloys.SS 316 Seamless Pipe is made without a fillet or welds. 316 ss tubing sizes range from ½ inches to 16 inches in outer diameter. 316 ss pipes are widely used in marine systems, pulp, and paper, chemical industries, etc.


    Item

    316 Stainless Steel Schedule 40 Seamless Pipe

    Steel Grade

    300 series

    Standard

    ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296

    Material

    304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202

    Surface

    Polishing,annealing,pickling,bright

    Type

    hot rolled and cold rolled

    Stainless steel round pipe/tube

    Size

    Wall thickness

    1mm-150mm

    Outer diameter

    6mm-2500mm

    Package

    Standard export seaworthy package,or as required.


    316 Stainless Steel Schedule 40 Seamless Pipe For Petrochemical Industry

    316 SS Pipe Chemical Compostion

    GradeCMnSiPSCrMoNiN
    316min.16.02.010.0
    max.0.082.00.750.0450.0318.03.014.00.10

    316 Stainless Pipe Mechanical Properties

    GradeTensile Strength (MPa) minYield Strength 0.2% Proof (MPa) minElongation (% in 50mm) minHardness
    Rockwell B (HR B) maxBrinell (HB) max
    3165152054095217

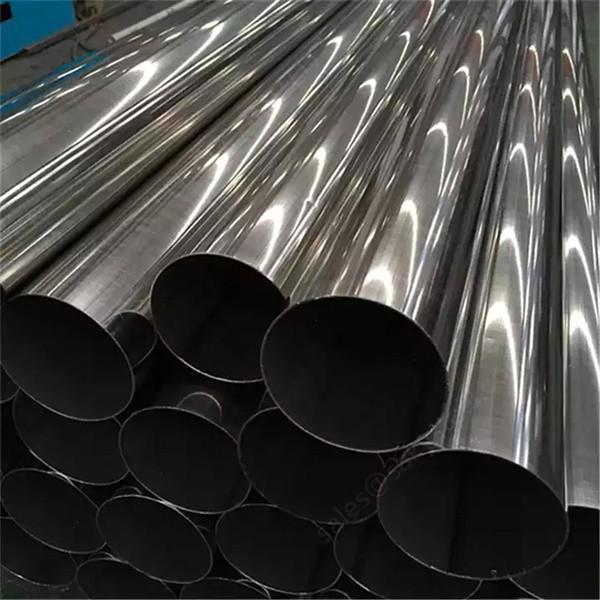

    316 Stainless Steel Tubing Detailed Photo

    316 SS Tube

    316 Stainless Steel Pipe Schedule Chart

    1/8" IPS(.405"O. D.)

    3 1/2" IPS( 4.000"O. D.)

    SCH 40, 80

    SCH 10, 40, 80, 160, XXH

    1/4" IPS(.540"O. D.)

    4" IPS(4.500"O. D.)

    SCH 10, 40, 80

    SCH 10, 40, 80, 160, XXH

    3/8" IPS(.675"O. D.)

    5" IPS( 5.563"O. D.)

    SCH 10, 40, 80

    SCH 10, 40, 80, 160, XXH

    1/2" IPS(.840"O. D.)

    6" IPS(6.625"O. D.)

    SCH 5, 10, 40, 80, 160, XXH

    SCH 5, 10, 40, 80, 120, 160, XXH

    3/4" IPS(1.050"O. D.)

    8 ” IPS(8.625"O. D.)

    SCH 10, 40, 80, 160, XXH

    SCH 5, 10, 40, 80, 120, 160, XXH

    1" IPS:(1.315′O. D.)

    10" IPS(10.750"O. D.)

    SCH 5, 10, 40, 80, 160, XXH

    SCH 10, 20, 40, 80 (.500), TRUE 80(.500)

    1-1/4" IPS(1.660"O. D.)

    12" IPS(12.750"O. D.)

    SCH 10, 40, 80, 160, XXH

    SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)

    1-1/2" IPS(1.900"O. D.)

    14" IPS(14.000"O. D.)

    SCH 10, 40, 80, 160, XXH

    SCH10 (.188), SCH40 (.375)

    2" IPS(2.375"O. D.)

    16" IPS(16.000"O. D.)

    SCH 10, 40, 80, 160, XXH

    SCH10(.188), SCH40(.375)

    2 1/2" IPS(2.875"O. D.)

    18" IPS (18.000"O. D.)

    SCH 10, 40, 80, 160, XXH

    SCH-40 (.375)

    3" IPS( 3.500"O. D.)


    SCH 5, 10, 40, 80, 160, XXH


    Stainless Steel 316 Pipes Packing:

    Packing Details:Standard export seaworthy package,or as required.

    Container Size
    20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
    40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
    40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High)
    Shipping Port:Tianjin,Shanghai,Qingdao port,or as required
